KONE Automatic sliding doors

Sliding doors

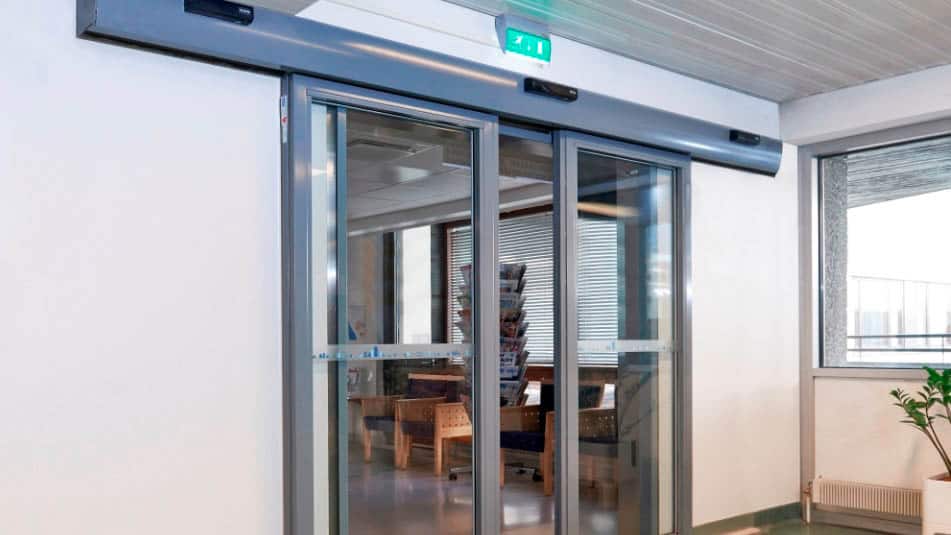

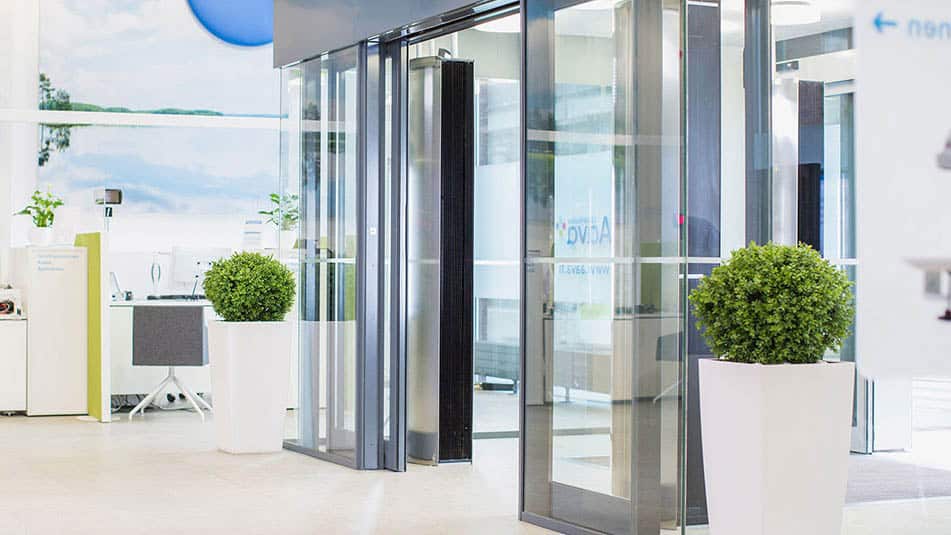

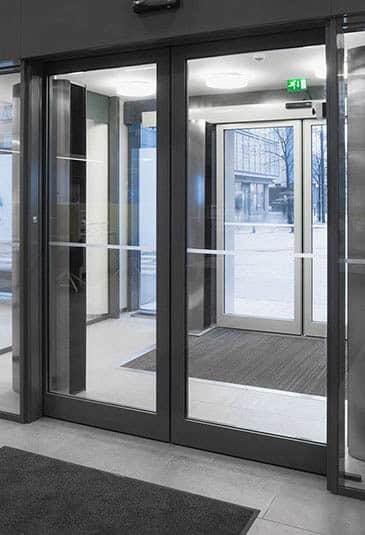

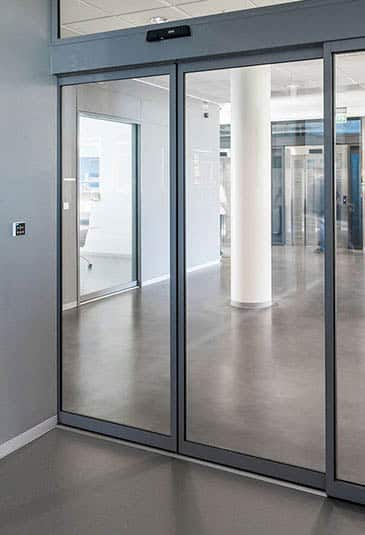

A KONE sliding door system is built for heavy use. Our automatic sliding doors are suitable for a wide range of building types – we can create a sliding doors plan for offices, residential buildings, retail environments and transit centers. KONE electric sliding doors can be also customized and enhanced with a variety of security and safety options.

Specifications

  • Segment: residential buildings, offices, medical facilities, retail and transit centers, hotels
  • Height: range 2100 mm - 3200 mm
  • Width: range 700 mm - 3000 mm
  • Weight: max. single sliding door 1x 200 kg, double sliding door 2x 160 kg
  • Operation: manual or automatic
  • Operator: KONE UniDrive®

Features and options

  • Insulated and non-insulated profile door systems
  • Single and double sliding, and telescopic
  • Available with three or six leaves
  • Wide variety of safety options, including manual switches, motion sensors, pocket screens, and access control integration
  • Escape route, fire safe, burglar resistant, radiation protection, and energy saving options
