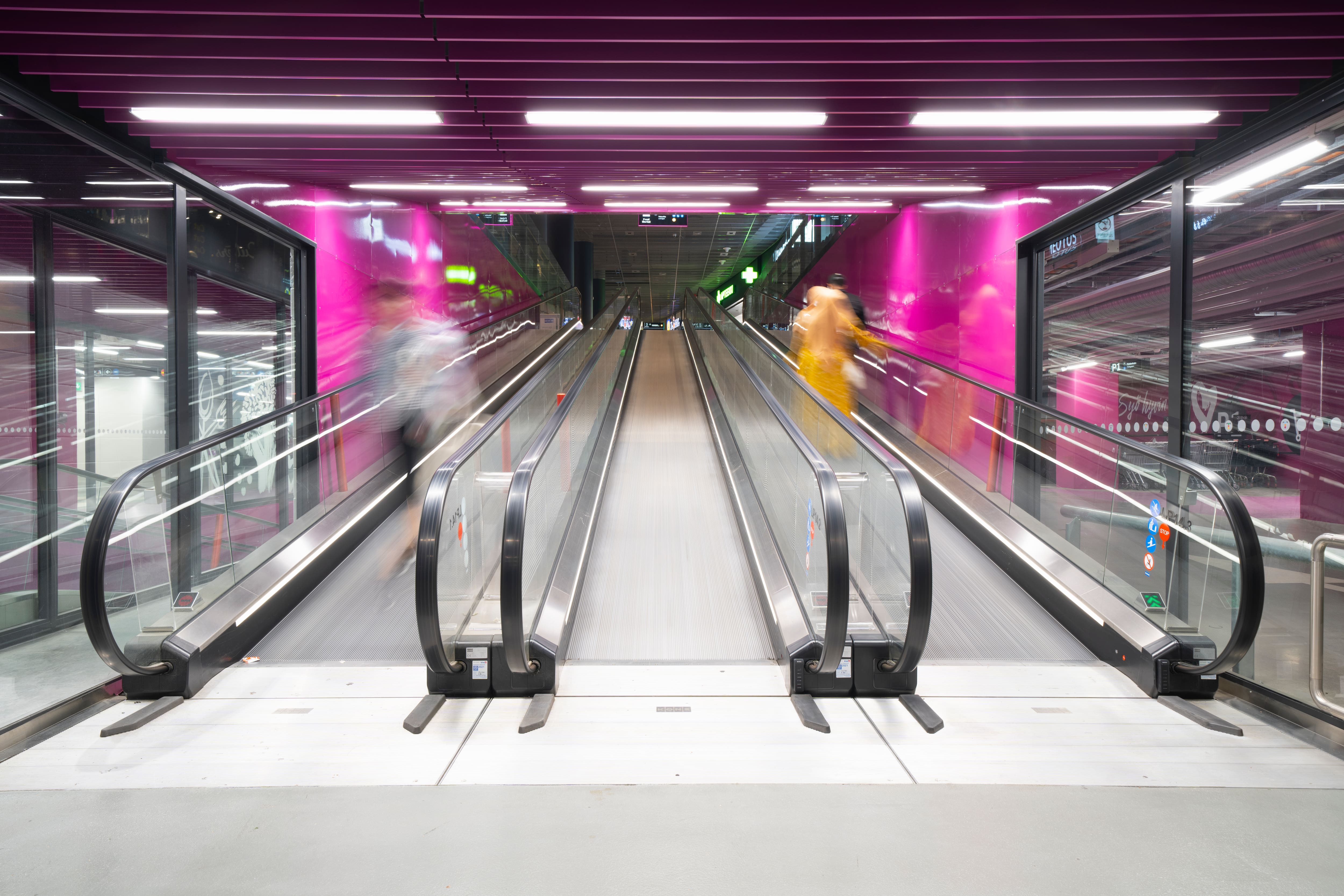

KONE TRAVELMASTER™ 115 INCLINED AUTOWALK
Inclined autowalk for smooth people flow
Inclined autowalk details
Description

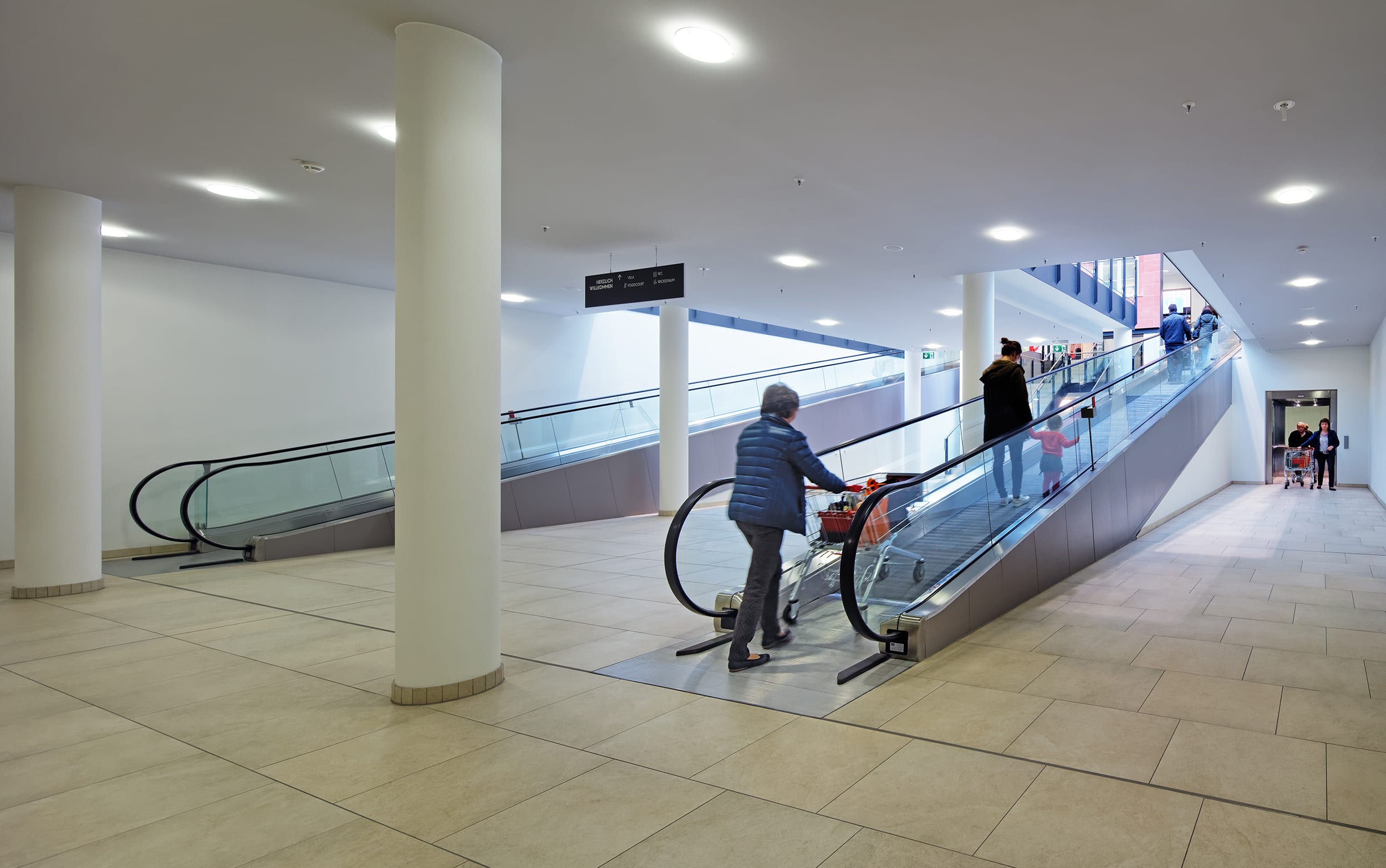

The KONE TravelMaster™ 115 is an inclined escalator that provides easy and safe access for environments with demanding people flow needs, such as when you need an escalator for shopping centers, department stores, supermarkets or hypermarkets.
Specifications
- Operational environment: indoor, semi-outdoor
- Speed:
0.5 m/s
- Inclination: 10º, 12º
- Pallet width: 1000 mm
- Vertical rise: up to 7 m
Inclined escalator safety
- Escalator safety is the starting point for every KONE escalator. The KONE TravelMaster™ 115 inclined escalator conforms to all local and international safety codes.
- We offer extensive escalator safety options to reduce risk of end-user accidents.
Tools and downloads
Inclined autowalk options and highlights
INCLINED AUTOWALK ENERGY-EFFICIENCY
Energy-efficient people flow that keep your building moving:
- Smart operational modes and inverter optimize inclined escalator energy consumption under different load conditions
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- An energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
- The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
ESCALATOR SAFETY
Peace of mind with the latest safety technology:
- High (1100 mm)balustrade improves escalator safety with a multiple level inclined escalator layout
- The pallet loose monitor and Sprialock threaded screw increase escalator safety for passengers and reliability on our pallets
- New traffic signalization solutions to provide extra guidance
- Fall-prevention barrier and extended balustrades provide additional passenger protection
- Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
INCLINED AUTOWALK DESIGN
Proven, reliable inclined escalator design to provide safe people flow and maximum availability in environments with medium to high traffic:
- Reduced escalator dimensions frees up more space for commercial activities
- Real inclinations allows for better inclined autowalk alignment and enhanced visual appearance of the building
- Flexible intermediate support placement allows easier integration with the building
- Innovative and attractive inclined autowalk lighting solutions that also improve passenger guidance and escalator safety
- A wide range of inclined escalator design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Escalator and autowalk solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TravelMaster 115
| Inclined autowalk | Commercial, retail, hotel, office
| 7 m
| 0.5 m/s
| 10°, 12°
| 12-16 hours/day
| Indoor, semi-outdoor
|
| TransitMaster 120
| escalator | Infrastructure
| 15 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | 20-24 hours/day | Indoor, semi-outdoor, outdoor
|
| TransitMaster 140
| escalator | Infrastructure
| 18 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30° | 20-24 hours/day | Indoor, outdoor |
| TransitMaster 165
| horizontal autowalk | Infrastructure
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
Further information about KONE premium escalators with TransVario drive (TravelMaster 110T, TransitMaster 120T, TransitMaster 140T) available here.
