TRANSITMASTER™ 140 INFRASTRUCTURE ESCALATOR
Reliable people flow for the most demanding transit environments
Moving staircase details
Description

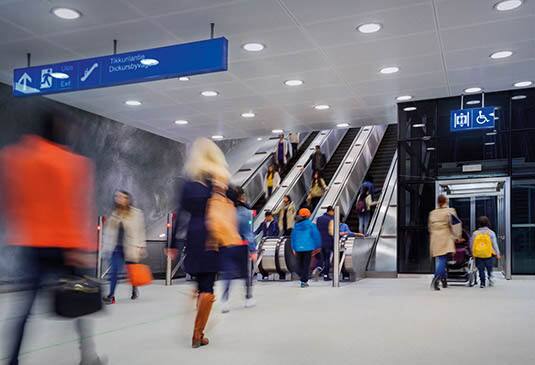

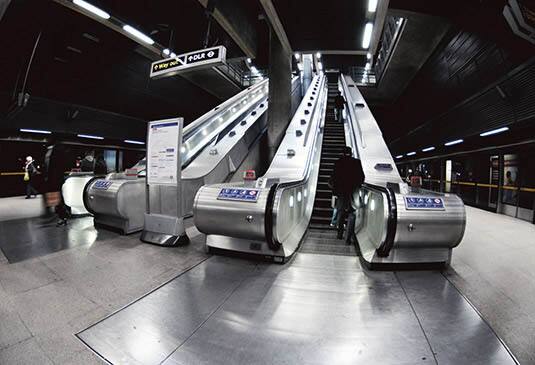

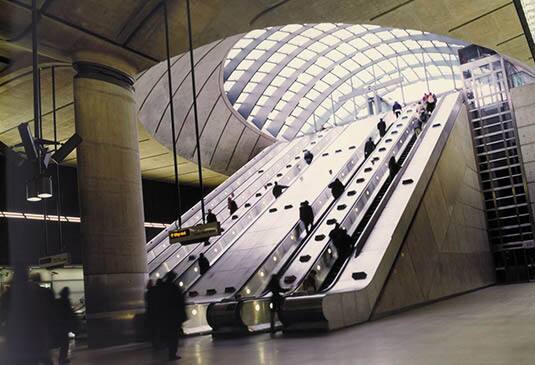

The KONE TransitMaster™ 140 moving staircase is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.
Specifications
- Operational environment : indoor, semi-outdoor, outdoor
- Speed : 0.5, 0.65, 0.75 m/s
- Inclination : 27.3–30º
- Step width : 1000 mm
- Vertical rise : up to 35 m
Moving staircase safety
- Safety is the starting point for every KONE escalator solution. The TransitMaster 140 moving staircase conforms to all local and international safety codes.
- We provide standard walkalator safety features including comb plate impact device switches and emergency stop buttons for passengers.
Tools and downloads
Escalator options and highlights
Escalator eco-efficiency
- Smart operational modes and an inverter optimize escalator energy consumption under different load conditions
- Long lasting escalator LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- An energy efficient inverter for moving stairs provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
- The optional regenerative technology for electric stairs cuts power consumption by recycling energy and feeding it back into the system
- The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk
Escalator safety
In addition to the standard escalator safety features, we offer optional safety features including
- Audible alarms and traffic signalization provide clear guidance on escalator travel direction
- Alarm for travel direction if passengers enter electric stairs in the wrong direction
- New escalator traffic signalization solutions and colored step demarcations for extra visual guidance
- Four-step horizontal section at the top and bottom of the escalator makes exit and entry smooth and safe
- Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Moving staircase design
High quality visual design for electric stairs offers the best possible user experience
- Innovative and attractive escalator lighting solutions that also improve passenger guidance and safety
- A wide range of escalator design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio"
Escalator and autowalk solutions
| Product name
| Description (+type)
| Segment
| Maximum rise
| Speed
| Inclination
| Duty cycle
| Environment
|
| TravelMaster 110
| escalator | Commercial, retail, hotel, office
| 13 m
| 0.4, 0.5 m/s
| 30°, 35°
| 12-16 hours/day
| Indoor, outdoor, semi-outdoor
|
| TravelMaster 115
| Inclined autowalk | Commercial, retail, hotel, office
| 7 m
| 0.5 m/s
| 10°, 12°
| 12-16 hours/day
| Indoor, semi-outdoor
|
| TransitMaster 120
| escalator | Infrastructure
| 15 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | 20-24 hours/day | Indoor, semi-outdoor, outdoor
|
| TransitMaster 140
| escalator | Infrastructure
| 18 m
| 0.4, 0.5, 0.65, 0.75 m/s | 27.3°, 30° | 20-24 hours/day | Indoor, outdoor |
| TransitMaster 165
| horizontal autowalk | Infrastructure
| 15-60 m
| 0.4, 0.5, 0.65, 0.75 m/s
| 0-6°
| 20-24 hours/day
| Indoor, semi-outdoor |
Further information about KONE premium escalators with TransVario drive (TravelMaster 110T, TransitMaster 120T, TransitMaster 140T) available here.
